Multi-unit drainage repair
A confirmed parkade drain failure, repaired without treating the parkade like an empty room.
Two damaged cast-iron drain sections in a multi-unit parkade required a repair plan for vehicle coordination, overhead work, pipe support, a protected work zone, and a clean handoff.
Request service- Property
- Multi-unit parkade
- Problem
- Damaged cast-iron drain sections
- Result
- New supported pipe installed
The access constraint
The pipe was overhead, the parkade was active, and access had to be earned.
The damaged sections served a storm floor drain above the parkade. Before work started, the team confirmed the affected run, the materials needed, and the vehicle-access constraint beneath the overhead work zone. That prevented a repair decision from being made on a single visible symptom alone.
The completed repair removed the confirmed failed sections and installed new cast piping, couplings, and support hardware. The result is documented here without identifying the building or its residents, but with enough detail for a property team to understand what changed and why.
The repair, documented
The failed section, the completed run, and the handoff work around it.
The repair sequence
Confirm the failed run, protect the work zone, then leave the repair supported and documented.
- 01
Confirm the damaged run

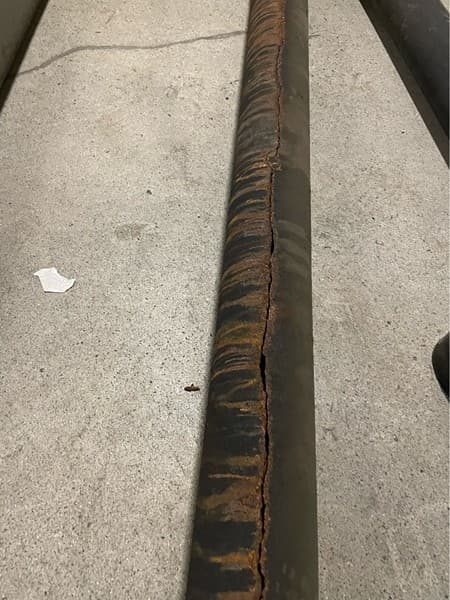

Inspect the cracked overhead drain sections and separate the confirmed failure from nearby piping that may only need observation.
- 02
Coordinate the protected work zone
Arrange for clear access and vehicle coordination beneath the overhead work so the team can repair safely without treating an active parkade as an empty room.
- 03
Remove and replace
Remove the damaged cast-iron sections and install the replacement piping and directional fitting.
- 04
Support and finish
Secure the new run with appropriate couplings and hangers, then complete cleanup and document the work.
The documented result

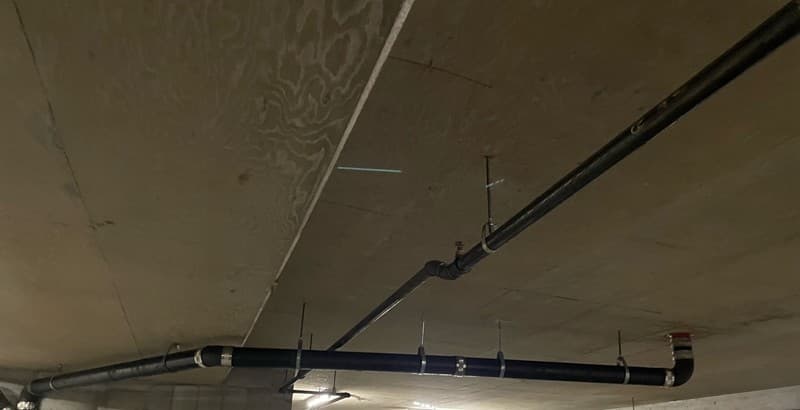

Two damaged sections were replaced and the new run was supported in place.
The repair replaced the two damaged pipe sections with new cast piping and fittings. New couplings, split-ring hangers, ready rod, and concrete inserts were used to secure the finished installation.
For strata and property teams, that means a clear record of what was repaired, how access was handled, and what is now in place.
- Two damaged cast-iron drain sections removed
- New pipe and directional fitting installed
- New couplings and overhead supports added

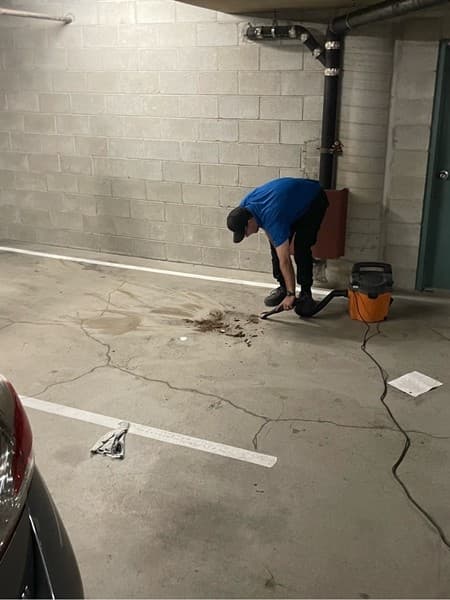

- Work area cleaned and completed repair documented
