Multi-unit mechanical room
A deteriorated hot-water system, rebuilt around a planned shutdown.
Multiple leaks, pitting, and limited isolation made a piecemeal repair unreliable. The work was planned around a building shutdown, staged water restoration, new distribution piping, and pressure verification before restart.
Request service- Property
- Multi-unit residential
- Scope
- Domestic hot-water repipe
- Result
- Pressure verified before restart
The condition
This was a system problem, not one failed fitting.
Multiple points in the domestic hot-water piping showed leakage and deterioration. Some existing connections could not be relied on, and the building did not have enough upstream isolation to treat the work as a quick local repair.

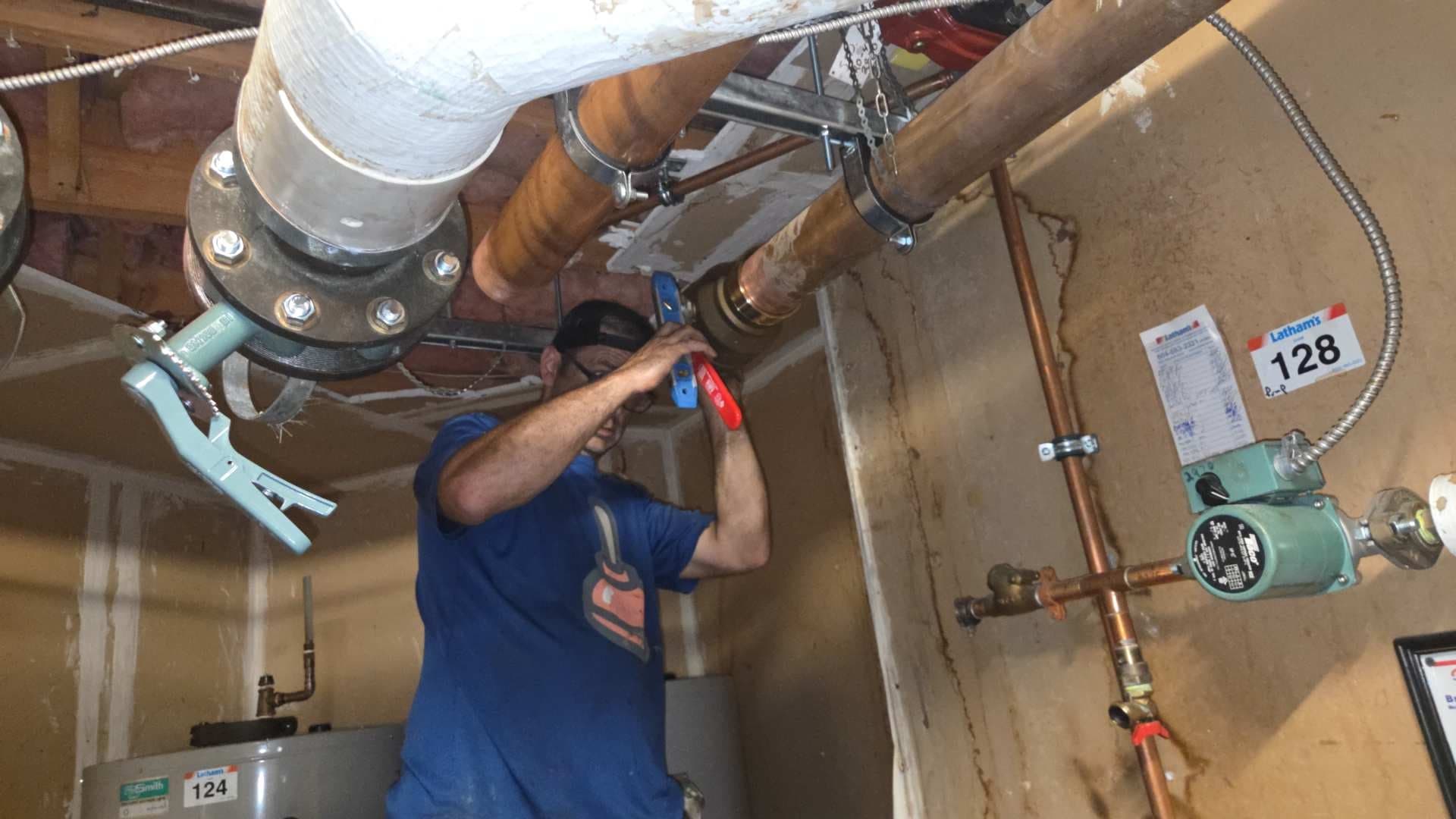

Before water was shut down, the work was prepared around access, replacement sections, new isolation points, and a staged return to service. Once the system was drained, the crew could expose the full condition and rebuild the affected distribution piping properly.
Completed field work

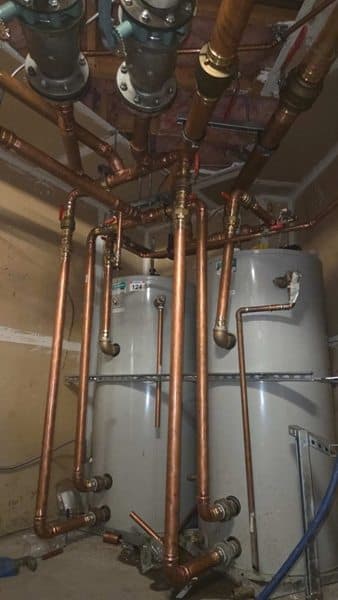

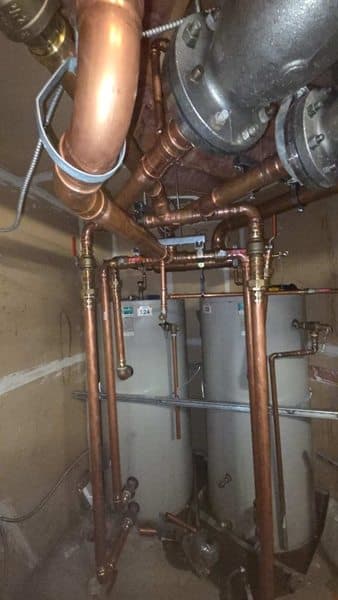

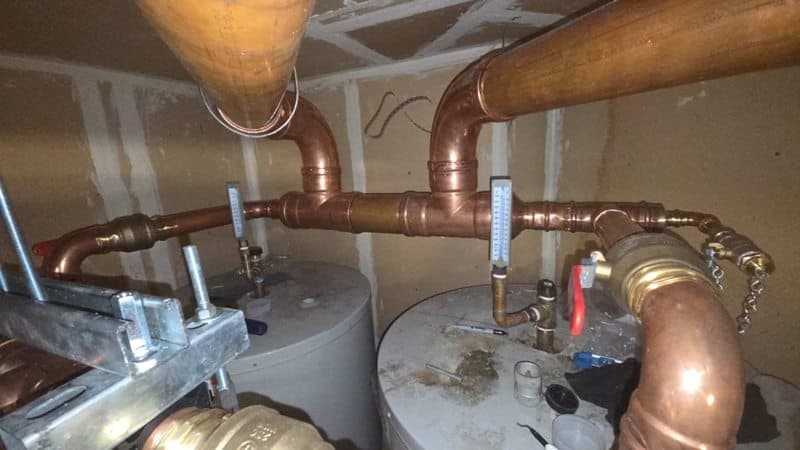

New distribution piping, documented at restart.
How the work was controlled
Plan first. Restore service only after the system holds.
Mechanical-room repipes affect more than the pipe being replaced. The sequence protects the building, makes the scope visible, and gives the restart a clear verification point.
- 01
Prepare the shutdown
Plan the access, replacement materials, and staged water restoration before isolating the affected system.
- 02
Drain and expose
Shut down the affected domestic-water system, drain it safely, and remove deteriorated sections that cannot be reused.
- 03
Rebuild and isolate
Install new distribution sections, valves, and supporting connections so future service can be more controlled.
- 04
Pressurize and verify
Restore the system progressively, correct any connection issue found under pressure, then restart and finish supports and insulation.
The outcome
A completed repipe with a deliberate restart, not a temporary patch.
The rebuilt piping held pressure after a connection was corrected during testing. The system was restarted, bled, checked again, and the final supports and insulation were completed.
For the property team, the value was a clearer, more serviceable domestic hot-water arrangement and a documented return to operation after a planned shutdown.
- Deteriorated domestic hot-water piping replaced
- New distribution and isolation points installed
- Pressure verification completed before restart
- Final supports and insulation completed
